Extend Your Own Page Type and Editor

Imagine you're tasked with building a countdown timer page for an online examination system. You open JitAi and review the existing page types: generic pages are too simplistic, data management pages don't fit the use case, and Markdown pages are completely unsuitable. At this point, you realize you need to create an entirely new page type.

This guide will walk you through the complete process of developing a custom page Type element. More importantly, you'll discover how JitAi's elegant architecture makes this seemingly complex task surprisingly straightforward.

Understanding how pages are loaded

Before diving into code, let's first understand a fundamental concept: when a user accesses a page, how does JitAi locate and load the appropriate code?

The page loading journey

Let's trace the complete journey from URL to rendering:

// User visits: /pages/examTimer

When this request arrives, JitAi initiates an elegant discovery process:

// Step 1: runApp.ts starts the application
await runtimeApp.getElement('pages.examTimer');

// Step 2: app.ts begins element lookup
async getElement(elementPath: string) {
    // Locate the element definition
    const elements = this.findElement(elementPath);

    // Key: Find the appropriate loader
    return await this.loadElement(elements);
}

This is where we encounter our first key concept: Loader.

Loader - the secret to flexibility

The Loader represents one of JitAi's most ingenious architectural designs. Rather than rigid loading logic, it's an inheritable, overridable function chain that provides tremendous flexibility.

// Finding a loader is like finding the right key
async getElementLoader(elementPath: string) {
    // 1. Does this page have its own dedicated key?
    if (element.define.loader) {
        return element.loader;
    }

    // 2. No? Does its Type have a universal key?
    if (element.define.type) {
        const typeModule = await this.getElement(element.type);
        if (typeModule?.loader) {
            return typeModule.loader;
        }
    }

    // 3. Still no? Use the master key (Meta's loader)
    const metaModule = await this.getElement('pages.Meta');
    return metaModule?.loader;
}

The elegance of this design lies in its layered approach:

• Instance specialization: Individual pages can define custom loading logic
• Type-level reuse: Pages of the same type share common loading mechanisms
• Meta fallback: Guarantees a default loader is always available

You might wonder: why is such a sophisticated mechanism necessary? Let's explore this through a real-world example.

Why Vue pages need custom loaders

Let's compare the loading requirements of React pages versus Vue pages:

// React pages: standard loading (default loader provided by Meta)
export default async (elements) => {
    const pageModule = await import(path);
    // Expected exports: PageCls and Render

    // Wrap with HOC, inject page instance
    const Render = pageHOC(PageWrapper, {
        PageCls: pageModule.PageCls,
        PageRender: pageModule.Render
    });

    return { PageCls, Render };
}

// Vue pages: special requirements (custom loader)
export default async (elements) => {
    const pageModule = await import(path);
    // Same expected exports: PageCls and Render

    // But! Vue needs a DOM element to mount
    const Render = vueHOC(VuePageWrapper, {
        PageCls: pageModule.PageCls,
        // Vue's Render needs to receive a DOM element
        PageRender: (dom, page) => {
            createApp(VueApp, { page }).mount(dom);
        }
    });

    return { PageCls, Render };
}

Notice the key difference? Vue pages require a real DOM element for mounting, whereas React simply returns a virtual DOM. This is precisely why Vue Types need custom loaders—they fundamentally alter how pages are loaded and rendered.

Developing a timer page Type

Now that we've grasped the underlying principles, let's develop a timer page Type. This hands-on example will truly showcase JitAi's power. Here's what we'll build:

Loading...

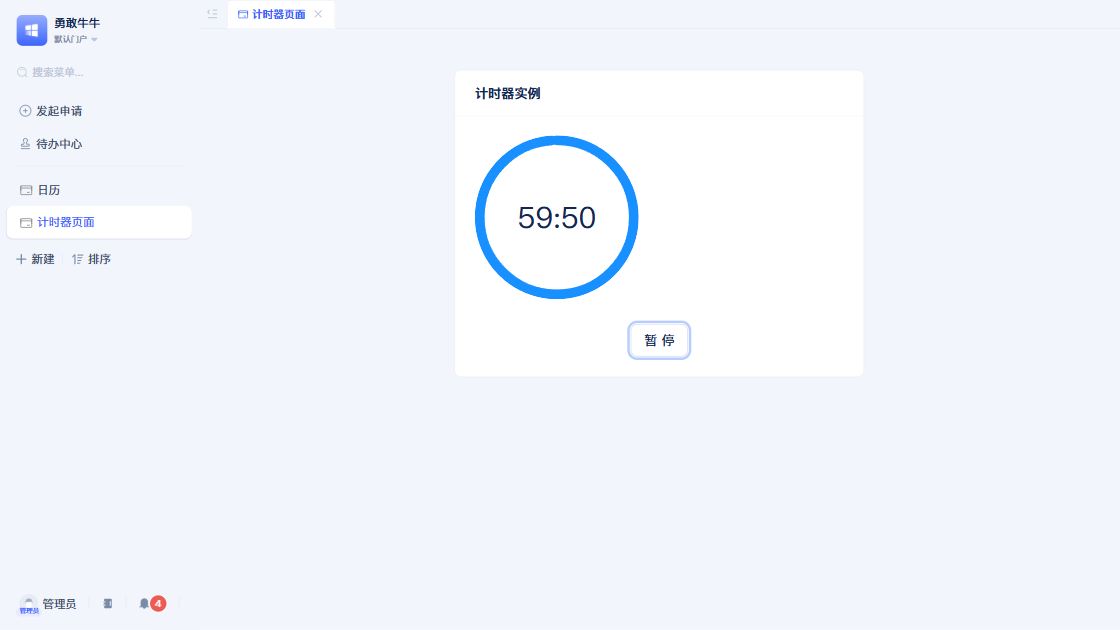

"Instance Demo"

Complete composition of a page Type

Before writing any code, let's understand the essential components that make up a complete page Type:

Component	Runtime Environment	Primary Responsibility	File Location
Type Element Core	Usage Zone	Define page class (PageCls) and render component (Render)	pages/TimerPageType/

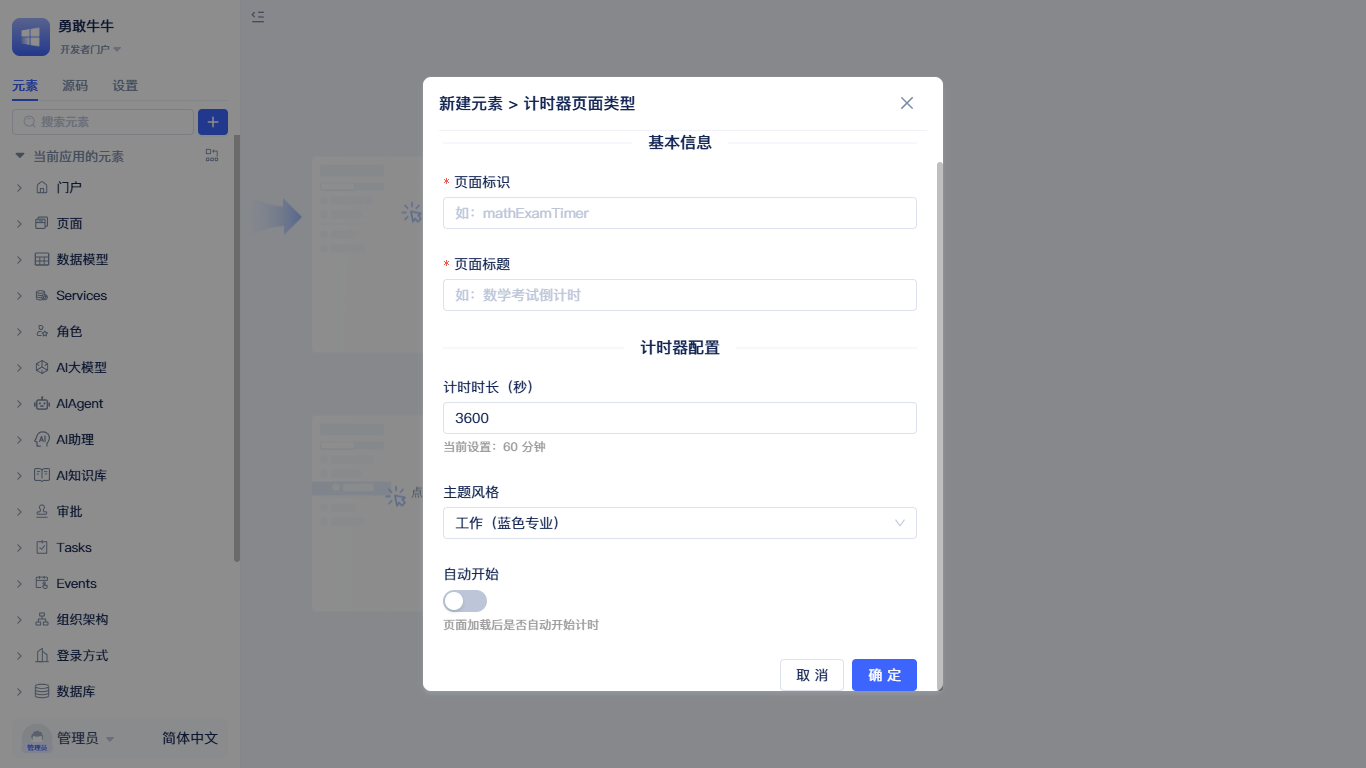

Element Definition Editor	IDE	Provide visual form for page creation	pages/TimerPageType/DefineEditor/
CRUD API	IDE	Generate page instance code based on configuration	pages/TimerPageType/Api/

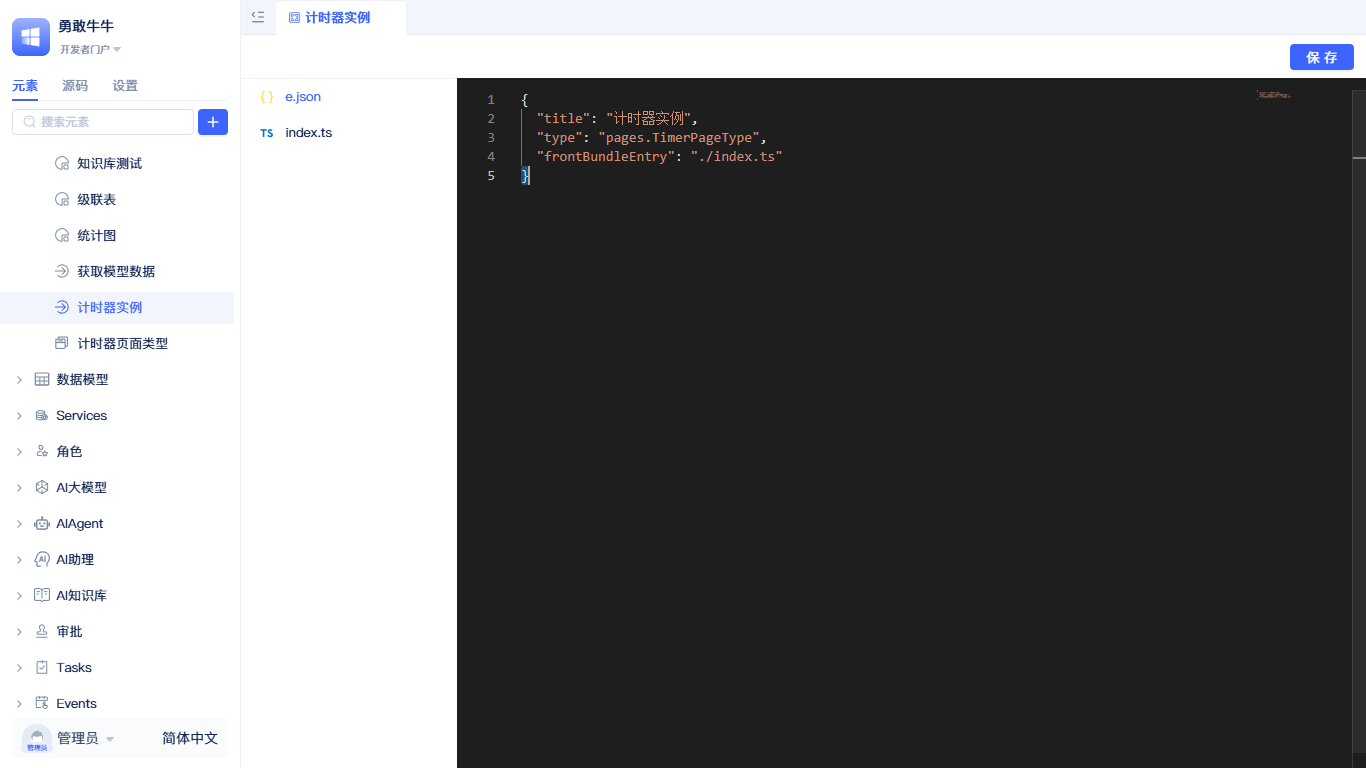

Element Editor	IDE	Provide code editing interface	pages/TimerPageType/editor/

These components have clearly defined responsibilities:

• Usage Zone components: Handle runtime page execution and rendering
• IDE components: Facilitate page creation, configuration, and editing

Step 1: Planning the directory structure

A complete page Type requires files in two locations:

# Usage Zone: Page runtime files
pages/
└── TimerPageType/
    ├── e.json           # Element definition, mark loadTime: "startUp"
    ├── index.ts         # Entry file, exports PageCls and Render
    ├── TimerPage.ts     # Page class, extends Jit.BasePage
    ├── Render.tsx       # Render component
    ├── DefineEditor/    # Creation configurator
    │   ├── e.json
    │   ├── index.ts
    │   └── Editor.tsx
    └── Api/             # CRUD interfaces
        ├── e.json
        ├── index.ts
        ├── create.ts
        └── update.ts

Step 2: Designing Type capabilities

Before writing code, let's define the essential capabilities our timer page should provide:

// Our expected usage pattern
const timerPage = new TimerPage({
    duration: 3600,        // 60 minutes
    onTimeout: () => {     // When time is up
        alert('Exam finished!');
    }
});

timerPage.start();        // Start timer
timerPage.pause();        // Pause
timerPage.getRemaining(); // Get remaining time

Step 3: Creating the Type element

Now let's create the TimerPageType. Since we're not implementing a custom loader, we'll rely on Meta's default loader, which requires us to adhere to its convention: exporting both PageCls and Render.

pages/TimerPageType/TimerPage.ts

import { Jit } from 'jit';

// This is the Type-level page class, defining common timer page capabilities
export class TimerPage extends Jit.BasePage {
    protected duration: number = 0;
    protected remaining: number = 0;
    protected timerId?: ReturnType<typeof window.setInterval>;
    protected status: 'idle' | 'running' | 'paused' | 'finished' = 'idle';

    // Configuration structure defined by Type - all instances will follow
    config?: {
        duration: number;      // Total duration (seconds)
        autoStart?: boolean;   // Auto-start
        warnAt?: number;       // Warning time point
        theme?: 'exam' | 'game' | 'work';
    };

    constructor(options: any) {
        super(options);
        this.duration = this.config?.duration || 3600;
        this.remaining = this.duration;
    }

    // Core methods - for instances to use or override
    start(): void {
        if (this.status === 'finished') return;

        this.status = 'running';
        this.timerId = setInterval(() => {
            this.remaining--;

            // Publish event to let UI respond
            this.publishEvent('TIMER_TICK', {
                remaining: this.remaining,
                percentage: (this.remaining / this.duration) * 100
            });

            // Warning check
            if (this.config?.warnAt && this.remaining === this.config.warnAt) {
                this.onWarning();
            }

            // Finish check
            if (this.remaining <= 0) {
                this.finish();
            }
        }, 1000);
    }

    pause(): void {
        if (this.timerId) {
            clearInterval(this.timerId);
            this.status = 'paused';
            this.publishEvent('TIMER_PAUSED');
        }
    }

    finish(): void {
        this.pause();
        this.status = 'finished';
        this.publishEvent('TIMER_FINISHED');
        this.onTimeout();
    }

    // Hook methods that instances can override
    onWarning(): void {
        console.log('Time is running out!');
    }

    onTimeout(): void {
        console.log('Time is up!');
    }

    // Format display - instances may need different formats
    formatTime(seconds: number): string {
        const hours = Math.floor(seconds / 3600);
        const minutes = Math.floor((seconds % 3600) / 60);
        const secs = seconds % 60;

        if (hours > 0) {
            return `${hours}:${minutes.toString().padStart(2, '0')}:${secs.toString().padStart(2, '0')}`;
        }
        return `${minutes}:${secs.toString().padStart(2, '0')}`;
    }

    // Methods to get remaining time and status (needed by Render component)
    getRemaining(): number {
        return this.remaining;
    }

    getStatus(): 'idle' | 'running' | 'paused' | 'finished' {
        return this.status;
    }
}

export default TimerPage;

Note the key design principles at work here:

• Type defines shared capabilities: The start, pause, and finish methods are universal to all timer instances
• Extension points provided: Methods like onWarning and onTimeout can be overridden by specific instances
• Event-driven architecture: UI and business logic are decoupled through an event system
• Inherits from BasePage: Automatically inherits foundational page capabilities (lifecycle management, event system, etc.)

Step 4: Creating the render component

pages/TimerPageType/Render.tsx

import React, { useState, useEffect } from 'react';
import { Progress, Button, Card, Typography } from 'antd';
import type { TimerPage } from './TimerPage';

interface TimerRenderProps {
    page: TimerPage;
}

const TimerRender: React.FC<TimerRenderProps> = ({ page }) => {
    const [remaining, setRemaining] = useState(page.getRemaining());
    const [percentage, setPercentage] = useState(100);
    const [status, setStatus] = useState(page.getStatus());

    useEffect(() => {
        // Subscribe to timer events
        const handlerIds: string[] = [];

        const tickHandlerId = page.subscribeEvent('TIMER_TICK', (e) => {
            const data = e as any;
            setRemaining(data.remaining);
            setPercentage(data.percentage);
        });
        handlerIds.push(tickHandlerId);

        const pausedHandlerId = page.subscribeEvent('TIMER_PAUSED', () => {
            setStatus('paused');
        });
        handlerIds.push(pausedHandlerId);

        const finishedHandlerId = page.subscribeEvent('TIMER_FINISHED', () => {
            setStatus('finished');
            setPercentage(0);
        });
        handlerIds.push(finishedHandlerId);

        // If auto-start is configured
        if (page.config?.autoStart) {
            page.start();
        }

        return () => {
            // Clean up event listeners
            handlerIds.forEach(id => {
                page.unSubscribeEvent(id);
            });
        };
    }, [page]);

    const getThemeColor = (): string => {
        const theme = page.config?.theme;
        if (theme === 'exam') return '#ff4d4f';
        if (theme === 'game') return '#52c41a';
        return '#1890ff';
    };

    return (
        <Card
            title={page.title || "Timer"}
            style={{ maxWidth: 500, margin: '50px auto' }}
        >
            <Progress
                type="circle"
                percent={percentage}
                format={() => page.formatTime(remaining)}
                size={200}
                strokeColor={getThemeColor()}
            />

            <div style={{ marginTop: 30, textAlign: 'center' }}>
                {status === 'idle' || status === 'paused' ? (
                    <Button
                        type="primary"
                        size="large"
                        onClick={() => {
                            page.start();
                            setStatus('running');
                        }}
                    >
                        {status === 'idle' ? 'Start' : 'Resume'}
                    </Button>
                ) : status === 'running' ? (
                    <Button
                        size="large"
                        onClick={() => {
                            page.pause();
                            setStatus('paused');
                        }}
                    >
                        Pause
                    </Button>
                ) : (
                    <Typography.Title level={3} type="danger">
                        Time's Up!
                    </Typography.Title>
                )}
            </div>
        </Card>
    );
};

export default TimerRender;

Next, let's create the Type's entry file, adhering to Meta loader conventions:

pages/TimerPageType/index.ts

import TimerPage from './TimerPage';
import Render from './Render';

// Must export PageCls and Render, this is Meta loader's convention
const PageCls = TimerPage;

export {
    TimerPage as default,
    PageCls,    // Meta loader requires this
    Render      // Meta loader requires this
};

We also need to configure this Type for startup loading in its e.json file:

pages/TimerPageType/e.json

{
    "title": "Timer Page Type",
    "type": "pages.Meta",
    "frontBundleEntry": "./index.ts",
    "loadTime": "startUp"  // Key: mark for startup loading
}

Step 5: Understanding dynamic inheritance

Here's where we encounter an elegant architectural pattern: dynamic inheritance. During application startup, JitAi performs the following:

// app.ts - loads elements marked as startUp during initialization
async loadNecessaryElements() {
    const startUpElements = findElementsByLoadTime('startUp');

    for (const element of startUpElements) {
        const module = await this.getElement(element);

        // If module exports default with a name property
        if (module?.default?.name) {
            // Register to Jit global object
            Jit.bindModule(module.default.name, module.default);
            // Now accessible via Jit.TimerPage!
        }
    }
}

This mechanism enables us to write instance code like this:

// Not import { TimerPage } from '../TimerPageType'
// But directly access from Jit object
class ExamTimer extends Jit.TimerPage {  // Dynamic inheritance!
    // ...
}

This design offers several key advantages:

• Decoupled dependencies: Instances remain agnostic to the Type's physical location
• Dynamic loading: Types can originate from anywhere—local files, remote sources, or extension packages
• Unified access: All page classes are accessible through the centralized Jit object

Step 6: Creating an exam timer instance

With our Type fully defined, let's create a concrete exam timer instance:

pages/examTimer/index.ts

// Note: Not direct import, but accessed through Jit
// Because TimerPage is registered to Jit object at startup
import { Jit } from 'jit';

// Dynamic inheritance: get TimerPage class from Jit object
class ExamTimerPage extends Jit.TimerPage {
    private answers: Map<string, string> = new Map();
    private autoSaveTimer?: ReturnType<typeof window.setInterval>;
    private examId: string = 'exam_001'; // Add examId property

    constructor(options: any) {
        super(options);

        // Exam page specific configuration
        this.config = {
            duration: 7200,      // 2 hours
            autoStart: false,    // Requires examinee to click start
            warnAt: 300,         // Warning at last 5 minutes
            theme: 'exam'
        };
    }

    // Override start method, add auto-save
    start(): void {
        super.start();

        // Auto-save answers every 30 seconds
        this.autoSaveTimer = setInterval(() => {
            this.saveAnswers();
        }, 30000);
    }

    // Override warning method
    onWarning(): void {
        // More than just console.log
        this.app.showNotification({
            type: 'warning',
            message: 'Only 5 minutes remaining, please save your work!'
        });

        // Highlight the timer
        this.publishEvent('HIGHLIGHT_TIMER');
    }

    // Override timeout method
    onTimeout(): void {
        // Force submit exam
        this.submitExam();

        // Navigate to results page
        this.app.navigate('/exam/result');
    }

    // Override pause method, stop auto-save
    pause(): void {
        super.pause();
        if (this.autoSaveTimer) {
            clearInterval(this.autoSaveTimer);
            this.autoSaveTimer = undefined;
        }
    }

    // Exam-specific methods
    saveAnswers(): void {
        const data = Array.from(this.answers.entries());
        this.app.request('saveExamProgress', { answers: data });
    }

    submitExam(): void {
        // Stop auto-save
        if (this.autoSaveTimer) {
            clearInterval(this.autoSaveTimer);
            this.autoSaveTimer = undefined;
        }

        this.saveAnswers();
        this.app.request('submitExam', {
            examId: this.examId,
            duration: this.duration - this.remaining // Use inherited protected property
        });
    }
}

// Export following conventions
const PageCls = ExamTimerPage;
export { ExamTimerPage as default, PageCls };

Notice how dynamic inheritance enables the exam timer to:

• Reuse the timer's core functionality (through Jit.TimerPage)
• Extend with exam-specific features like auto-save and forced submission
• Override warning and timeout behaviors to meet specific requirements
• Remain agnostic to TimerPage's physical location

This exemplifies the elegance of the Type mechanism: achieving the optimal balance between code reuse and customization.

In fact, JitAi's built-in page types follow this exact same pattern:

• Jit.BasePage — Foundation class for all pages
• Jit.GridPage — Used by standard grid pages
• Jit.DataManagePage — Used by data management pages

Your TimerPage has now joined this family as Jit.TimerPage!

Loading...

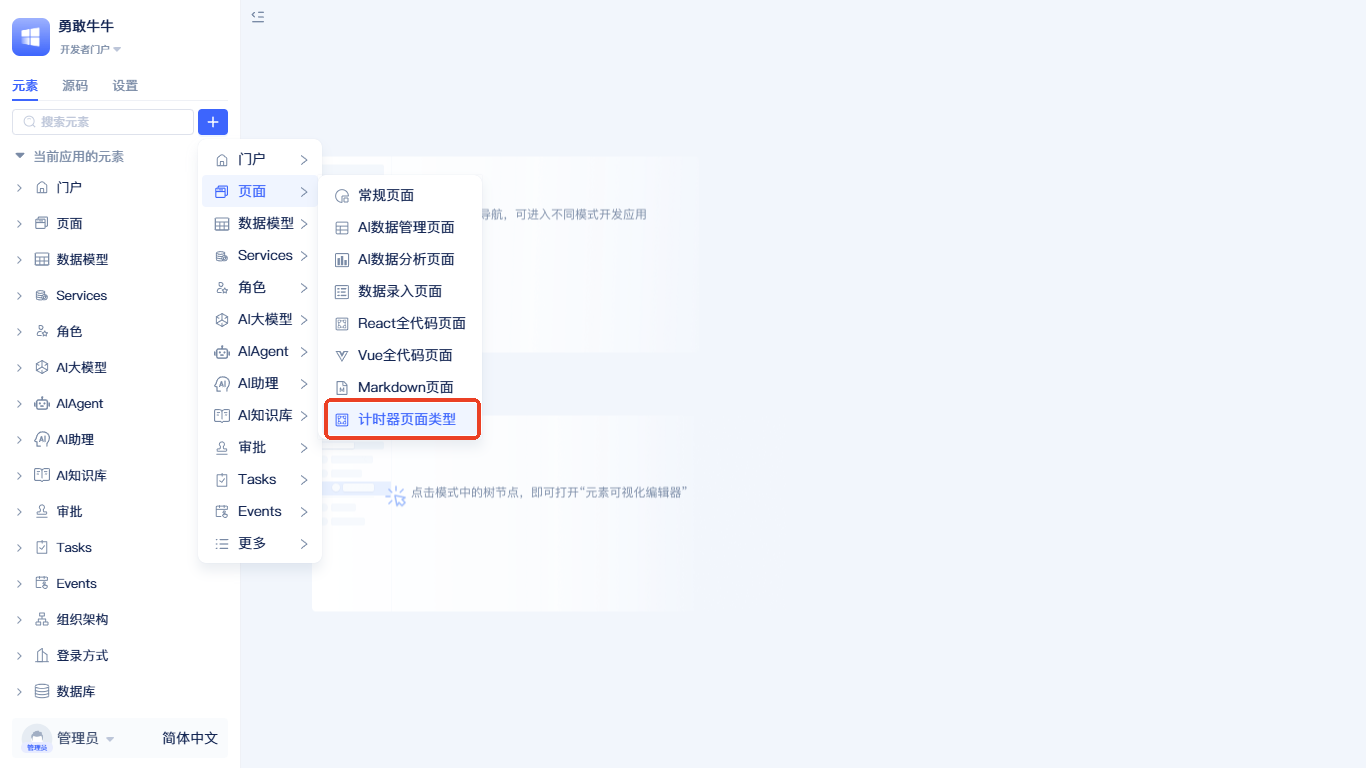

"Visible in Visual Editor"

After completing these steps, your newly created page type will appear in the visual editor.

Making Type configurable in IDE

At this stage, our TimerPageType is fully functional. However, to enable other developers to easily create timer pages through the IDE, we need to provide three supporting tools.

DefineEditor - simplifying creation

The DefineEditor provides a visual interface for creating page Type instances. When users click "Create" in the visual editor, this component is invoked, producing the following interface:

Loading...

"Definition Editor"

This requires specific e.json configuration:

pages/TimerPageType/DefineEditor/e.json

{
    "type": "editors.React",
    "title": "Timer Page Type Definition Editor",
    "targetType": ["pages.TimerPageType"],
    "tag": "defineEditor",
    "outputName": "index",
    "frontBundleEntry": "./index.ts"
}

Key configuration properties:

• type: Must be "editors.React" to identify this as a React-based editor element
• targetType: Array format specifying which page Type this editor serves (here: ["pages.TimerPageType"])
• tag: Must be "defineEditor" to identify this as a definition editor
• outputName: The exported module name, typically "index"
• frontBundleEntry: Path to the frontend entry file

pages/TimerPageType/DefineEditor/Editor.tsx

import React, { useState } from 'react';
import { Form, Input, InputNumber, Select, Switch, Divider, Button } from 'antd';

interface TimerDefineEditorProps {
    onSave: (data: any) => void;
    onCancel: () => void;
}

const TimerDefineEditor: React.FC<TimerDefineEditorProps> = ({ onSave, onCancel }) => {
    const [formData, setFormData] = useState({
        name: '',
        title: '',
        path: 'pages', // Add default path
        duration: 3600,
        theme: 'work',
        autoStart: false
    });

    const handleSave = () => {
        // Validate required fields
        if (!formData.name || !formData.title) {
            alert('Please fill in page identifier and title');
            return;
        }
        onSave(formData);
    };

    return (
        <div>
            <Form layout="vertical">
                <Divider>Basic Information</Divider>

                <Form.Item label="Page Identifier" required>
                    <Input
                        placeholder="e.g.: mathExamTimer"
                        value={formData.name}
                        onChange={e => setFormData({...formData, name: e.target.value})}
                    />
                </Form.Item>

                <Form.Item label="Page Title" required>
                    <Input
                        placeholder="e.g.: Math Exam Countdown"
                        value={formData.title}
                        onChange={e => setFormData({...formData, title: e.target.value})}
                    />
                </Form.Item>

                <Divider>Timer Configuration</Divider>

                <Form.Item label="Duration (seconds)">
                    <InputNumber
                        min={1}
                        value={formData.duration}
                        onChange={v => setFormData({...formData, duration: v || 3600})}
                        style={{ width: '100%' }}
                    />
                    <div style={{ color: '#999', fontSize: 12, marginTop: 4 }}>
                        Current setting: {Math.floor(formData.duration / 60)} minutes
                    </div>
                </Form.Item>

                <Form.Item label="Theme Style">
                    <Select
                        value={formData.theme}
                        onChange={v => setFormData({...formData, theme: v})}
                    >
                        <Select.Option value="exam">Exam (Red Alert)</Select.Option>
                        <Select.Option value="game">Game (Green Vitality)</Select.Option>
                        <Select.Option value="work">Work (Blue Professional)</Select.Option>
                    </Select>
                </Form.Item>

                <Form.Item label="Auto Start">
                    <Switch
                        checked={formData.autoStart}
                        onChange={v => setFormData({...formData, autoStart: v})}
                    />
                    <div style={{ color: '#999', fontSize: 12, marginTop: 4 }}>
                        Whether to auto-start timer after page loads
                    </div>
                </Form.Item>
            </Form>

            <div style={{ marginTop: 24, textAlign: 'right' }}>
                <Button onClick={onCancel} style={{ marginRight: 8 }}>Cancel</Button>
                <Button type="primary" onClick={handleSave}>OK</Button>
            </div>
        </div>
    );
};

export default TimerDefineEditor;

API - generating correct code

The API element provides CRUD (Create, Read, Update, Delete) interfaces for page Types. This also requires specific e.json configuration:

pages/TimerPageType/Api/e.json

{
    "title": "Timer Page Type API",
    "type": "elementApis.Meta",
    "targetType": "pages.TimerPageType",
    "functionList": [
        {
            "name": "create",
            "title": "create",
            "args": []
        },
        {
            "name": "update",
            "title": "Edit",
            "args": []
        }
    ],
    "outputName": "index",
    "frontBundleEntry": "./index.ts"
}

Key configuration properties:

• type: Must be "elementApis.Meta" to identify this as an API element
• targetType: String format specifying the target type this API serves (here: "pages.TimerPageType")
• functionList: Array defining the API's function list
  • name: Function identifier, corresponding to the actual exported function
  • title: Display name shown to users in the IDE
  • args: Parameter list (empty array indicates parameters are handled internally)
• outputName: The exported module name, typically "index"
• frontBundleEntry: Path to the frontend entry file

pages/TimerPageType/Api/create.ts

import { getRuntimeApp } from 'jit';

interface CreateFormData {
    name: string;
    title: string;
    path: string;
    duration: number;
    theme: string;
    autoStart: boolean;
}

export default async function create(formData: CreateFormData) {
    const app = getRuntimeApp();
    const { name, title, path, duration, theme, autoStart } = formData;
    const fullName = `${path}.${name}`;

    // Generate page code - note use of Jit.TimerPage instead of import
    const code = `import { Jit } from 'jit';

class ${name}Page extends Jit.TimerPage {
    constructor(options) {
        super(options);
        this.config = {
            duration: ${duration},
            theme: '${theme}',
            autoStart: ${autoStart}
        };
    }
}

const PageCls = ${name}Page;
export { ${name}Page as default, PageCls };
`;

    // Generate e.json configuration
    const eJsonContent = {
        title,
        type: 'pages.TimerPageType',
        frontBundleEntry: './index.ts'
    };

    // Save to filesystem
    await app.saveElement([{
        ePath: `${fullName.split('.').join('/')}/e.json`,
        define: eJsonContent,
        resources: {
            'index.ts': code,
            'e.json': JSON.stringify(eJsonContent, null, 2)
        }
    }]);

    return {
        fullName,
        title,
        name,
        type: 'pages.TimerPageType'
    };
}

Editor - making modifications easier

The editor element is optional. If you don't define a custom editor for your page Type, the system automatically provides a generic code editor as a fallback. This default editor offers essential source code editing capabilities, including syntax highlighting, code hints, and file management:

Loading...

"Default Editor Effect"

Of course, if you wish to deliver a more specialized editing experience, you can design a custom editor interface tailored to your page Type's unique characteristics.

Core editor APIs

JitAi provides two essential APIs for editor development:

1. Retrieving source code

// Get all source files of an element
const resources = await app.services.ElementSvc.getElementResource(
    fullName,    // Element full name
    [],          // List of files to ignore
    [],          // List of files to fetch (empty array means fetch all)
    true         // Whether extended information is needed
);
// Return format: { 'index.ts': 'file content', 'config.json': 'config content', ... }

2. Saving source code

// Save modified source files
await app.saveElementResource(
    fullName,      // Element full name
    elementFiles   // File content object: { 'filename': 'file content' }
);

Editor design recommendations

• Multi-file support: Utilize a Tabs component to enable editing of multiple files
• Syntax highlighting: Automatically select the appropriate language mode based on file extensions
• Save detection: Compare original and current content to prompt users about unsaved changes
• Error handling: Implement graceful error handling for loading and saving operations
• User experience: Provide essential functions such as refresh, undo, and keyboard shortcuts

The specific editor interface design is entirely at the developer's discretion and should align with the page Type's unique requirements.

More application scenarios

Beyond timer pages, JitAi's page Type mechanism supports a wide variety of specialized use cases:

Special requirement types

• 3D visualization pages: Integration with Three.js or Babylon.js for immersive 3D experiences
• Real-time collaboration pages: WebSocket or WebRTC integration for collaborative editing
• Mobile-optimized pages: Touch-optimized interactions designed specifically for mobile devices
• Print-ready pages: Layouts and components optimized for high-quality print output
